Code Share: Deploy kagent with Agent Substrate#

Agent sessions are bursty. A user asks a question, the agent thinks for a few seconds, then the session sits idle for minutes — or hours — waiting on the next turn. Plain Kubernetes handles this badly: an idle pod still books its CPU and memory, and a cold pod takes seconds to come back. Multiply that across thousands of conversations and you're paying for a lot of nothing.

Agent Substrate flips the model. It decouples the agent session from the pod: idle sessions are checkpointed — full RAM and filesystem, via gVisor — to object storage, the pod returns to a warm pool, and the session resumes sub-second on the next request, exactly where it left off. Think serverless scale-to-zero, but for stateful agents.

kagent is the Kubernetes-native agent control plane. Wire substrate in as its execution layer and a declarative SandboxAgent becomes a gVisor actor instead of a long-running Deployment.

The big idea, in plain English#

Picture a small hotel with a handful of rooms and a lot of guests.

• The rooms are your pods (substrate calls them workers). They're expensive to build, so you keep only a few, and you keep them ready to use.
• Each guest is one agent conversation (an actor). A guest is only in the room while they're actually doing something.
• When a guest steps out, you don't leave the room sitting empty on the clock. You snapshot the room exactly as it is — the open laptop, the papers on the desk, the half-finished coffee — pack it into storage, and give the room to the next guest.
• When the first guest comes back, you restore their room in under a second, precisely how they left it. They never know it was gone.

That's Agent Substrate. A few "rooms" (pods) serve far more "guests" (agent sessions) than you have rooms — because idle guests are parked in cheap storage instead of holding a room hostage. The rest of this article is the concepts, the use cases, and the exact commands to build that hotel on your laptop.

This guide covers three things:

1. What a substrate is (concepts from learn.agentsubstrate.dev)
2. What you can actually accomplish with it (use cases)
3. How to set it up with kagent OSS on a throwaway kind cluster — one-shot script or manual Helm

Runnable code for this path lives in 01-kagent-agent-substrate. Prefer a guided lab? Same flow in the Instruqt workshop.

What is Agent Substrate?#

Short version: it lets a handful of pods behave like thousands of always-on agents, by putting the idle ones to sleep in cheap storage and waking them instantly when needed.

Here's the official definition, from the atlas at learn.agentsubstrate.dev:

Agent Substrate is a Kubernetes-native runtime for highly-multiplexed actor workloads — AI agents, sandboxed environments, stateful services. It decouples actor lifecycle from Pods, so a small pool of pre-warmed gVisor workers can host 30× more actors than there are pods, by suspending idle actors to object storage and restoring them on demand.

Kubernetes is excellent at long-running services. It is not excellent at:

Architecture bet in one sentence: Kubernetes provisions infrastructure; substrate schedules actors.

Core concepts (glossary)#

These terms show up everywhere in the UI, CRDs, and grpcurl surface. Don't let the ate* names scare you — sticking with the hotel picture: an actor is a guest, a worker is a room, a snapshot is the guest's packed-up room in storage, and everything starting with ate is hotel staff (the front desk, the concierge, the bellhop). Definitions match learn.agentsubstrate.dev/concepts.

Actor lifecycle#

CreateActor → SUSPENDED
     │
     ▼
ResumeActor → RESUMING → RUNNING
     │                      │
     │                      ▼
     │               SuspendActor → SUSPENDING → SUSPENDED
     │
     └── DeleteActor (from SUSPENDED)

Only RUNNING holds a worker. Between chat turns a declarative session is typically SUSPENDED.

Request path (why resume is fast)#

On each HTTP hit to an actor:

1. DNS resolves actorId.actors.resources.substrate.ate.dev → atenet router (not the worker IP).
2. ExtProc extracts the actor ID and calls ateapi ResumeActor.
3. ateapi picks an idle worker from Redis (no kube-scheduler), asks atelet to restore the snapshot.
4. ateom-gvisor runs runsc restore -background — sentry comes up immediately; pages fault in on demand.
5. Router rewrites :authority to the worker pod and forwards the request.

In plain English: a message comes in, the router figures out which "guest" it's for, wakes them up into any free room if they were asleep, and forwards the message. If the guest was already awake, it just forwards — no wake-up needed. Either way, you never pay for an empty room.

Warm path (already RUNNING): skip restore, just route. Cold path (SUSPENDED): restore + route. No idle pod tax either way.

Deep dive: Resume actor end-to-end · System topology.

What can you accomplish? (use cases)#

Substrate is framework-agnostic at the OCI/gVisor layer. With kagent OSS on top, these are the practical outcomes.

1. Dense multi-session chat agents (this guide)#

Many concurrent declarative conversations without one Deployment per session.

• Each UI/chat session becomes a short-lived actor.
• After the turn, the actor snapshots back; the worker serves the next session.
• One small WorkerPool multiplexes far more sessions than it has pods (~30× oversubscription is the design point).

You get: serverless economics for stateful chat, with memory and filesystem preserved across turns.

2. Sandboxed cluster assistants (Kubernetes tools in a box)#

Run a SandboxAgent with MCP tools (k8s_get_resources, logs, events) inside gVisor.

• Isolation: hostile or buggy tool use stays in the sandbox.
• Density: idle assistants don't pin CPUs.
• Identity: actor is a first-class substrate identity, not "whatever ServiceAccount the pod had forever."

This demo's hello-substrate is exactly that pattern — a Kubernetes assistant actor on the default pool.

3. Coding harnesses and long-lived sandboxes (AgentHarness)#

kagent can place OpenClaw / Hermes-style harnesses on substrate (runtime: substrate).

• Shared actor for a coding session or workspace.
• Pins a worker while active (scale the pool: roughly 1 + active harnesses for headroom).
• Strong isolation for shell, git, and untrusted code.

See the kagent AgentHarness docs after this walkthrough.

4. Agent swarms / many-actor demos#

Substrate's own demos (e.g. many stateful counter actors on few workers) show the multiplexing thesis: hundreds of stateful actors on a handful of pods.

You get: a path toward "millions of idle agents, thousands of wakeups/sec" without etcd holding every session.

5. Security-minded agent platforms#

• gVisor (or micro-VM class) per actor.
• Egress can sit behind agentgateway so agents never hold provider keys (Solo's enterprise pattern).
• Snapshot-to-storage means you can reclaim compute without losing session state.

North-star metrics from the architecture docs: ~100 ms activation p95, extreme scale of idle actors, high wakeup throughput. Treat those as direction, not an SLA for the kind lab.

Architecture on kind#

What you will run:

┌──────────────────────────── kind cluster (kagent-substrate) ────────────────────────────┐
│                                                                                          │
│   namespace: kagent                          namespace: ate-system                       │
│   ┌────────────────────┐                     ┌──────────────────────────────────────┐   │
│   │ kagent-controller  │  controller.substrate.* │ ate-api-server  (scheduling)      │   │
│   │ kagent-ui          │ ───────────────────────▶│ atenet-router   (L7 routing)      │   │
│   │ SandboxAgent       │                     │   │ atelet          (node supervisor) │   │
│   │   hello-substrate  │                     │   │ valkey-cluster  (state)           │   │
│   │ WorkerPool         │                     │   │ rustfs          (snapshots/S3)    │   │
│   │   kagent-default   │                     │   └──────────────────────────────────────┘ │
│   └────────────────────┘                                                                  │
└──────────────────────────────────────────────────────────────────────────────────────────┘

Pinned versions (this guide)#

Pairing matters. Substrate 0.0.8 matches kagent 0.10.0-beta6 ateapi/CreateActor protos so UI chat works. Substrate 0.0.9 broke that wire format — only bump together with a matching kagent. Node image matters. Substrate CRDs use CEL format.dns1123Label / dns1123Subdomain (Kubernetes 1.31+). Old kind defaults reject the CRDs.

Prerequisites#

• Linux host or VM (~8 vCPU / 16 GB RAM). Valkey (6) + control plane is heavy for a laptop-sized VM.
• Docker running
• OpenAI API key (real LLM calls)
• Optional: grpcurl + jq for the control-plane section

macOS / Windows: prefer a cloud Linux VM (n1-standard-8, m5.2xlarge, …). Docker Desktop often fails the gVisor checkpoint path.

Quick start (one-shot script)#

From the demo directory:

export OPENAI_API_KEY="sk-..."
# optional: cp .env.example .env  && edit .env

chmod +x setup.sh teardown.sh
./setup.sh

setup.sh installs tools if missing, creates kind, installs substrate + kagent (wired), and applies manifests/hello-substrate.yaml.

Open the UI:

kubectl -n kagent port-forward svc/kagent-ui 8080:8080
# → http://localhost:8080 → Agents → hello-substrate

Tear down:

./teardown.sh

Script knobs#

Manual walkthrough (same path as the script)#

Env#

export OPENAI_API_KEY="sk-..."
export KIND_CLUSTER=kagent-substrate
export SUBSTRATE_VERSION=0.0.8
export KAGENT_VERSION=0.10.0-beta6

⚠️ Do not write OPENAI_API_KEY=... helm ... --set ...="${OPENAI_API_KEY}" on one line — the variable expands before the assignment and you silently install with an empty key.

Step 1 — kind cluster#

kind create cluster --name "${KIND_CLUSTER}" --image kindest/node:v1.35.0 --wait 120s
kubectl get nodes

Step 2 — Agent Substrate#

JWT auth (ServiceAccount tokens) is the chart default — no feature gates.

helm upgrade --install substrate-crds \
  oci://ghcr.io/kagent-dev/substrate/helm/substrate-crds \
  --version "${SUBSTRATE_VERSION}" \
  --namespace ate-system --create-namespace --wait

helm upgrade --install substrate \
  oci://ghcr.io/kagent-dev/substrate/helm/substrate \
  --version "${SUBSTRATE_VERSION}" \
  --namespace ate-system --wait --timeout 10m

kubectl get pods -n ate-system

Expect ate-api-server, ate-controller, atelet-*, atenet-router, valkey-cluster-0..-5, rustfs Running (plus Completed init Jobs).

Step 3 — kagent wired to substrate#

Order matters: install substrate first. The kagent controller crash-loops if ateapi is unreachable at startup.

helm upgrade --install kagent-crds \
  oci://ghcr.io/kagent-dev/kagent/helm/kagent-crds \
  --version "${KAGENT_VERSION}" \
  --namespace kagent --create-namespace --wait

helm upgrade --install kagent \
  oci://ghcr.io/kagent-dev/kagent/helm/kagent \
  --version "${KAGENT_VERSION}" --namespace kagent --timeout 10m --wait \
  --set providers.default=openAI \
  --set providers.openAI.apiKey="${OPENAI_API_KEY}" \
  --set controller.substrate.enabled=true \
  --set controller.substrate.ateApiEndpoint="dns:///api.ate-system.svc:443" \
  --set controller.substrate.ateApiInsecure=true \
  --set controller.substrate.atenetRouterURL="http://atenet-router.ate-system.svc:80" \
  --set controller.substrate.ateApiTokenFile="/var/run/secrets/tokens/ate-api/token" \
  --set controller.substrate.defaultWorkerPool.namespace=kagent \
  --set controller.substrate.defaultWorkerPool.name=kagent-default \
  --set substrateWorkerPool.create=true \
  --set substrateWorkerPool.name=kagent-default \
  --set substrateWorkerPool.replicas=2 \
  --set substrateWorkerPool.ateomImage=ghcr.io/kagent-dev/substrate/ateom-gvisor:v0.0.8 \
  --set grafana-mcp.enabled=false \
  --set observability-agent.enabled=false

If Helm times out on cold start:

kubectl wait deploy/kagent-controller -n kagent --for=condition=Available --timeout=10m

Verify:

kubectl get secret kagent-openai -n kagent
kubectl get workerpools.ate.dev -A   # expect kagent/kagent-default

kubectl -n kagent port-forward deploy/kagent-controller 8083:8083 >/tmp/pf-ctrl.log 2>&1 &
sleep 3
curl -s http://localhost:8083/api/substrate/status; echo
# expect "enabled": true
kill %1 2>/dev/null

Step 4 — Deploy a SandboxAgent#

Manifest (also in the demo repo as manifests/hello-substrate.yaml):

apiVersion: kagent.dev/v1alpha2
kind: SandboxAgent
metadata:
  name: hello-substrate
  namespace: kagent
spec:
  type: Declarative
  description: A Kubernetes assistant running inside a substrate gVisor actor
  declarative:
    # Go runtime is required for gVisor checkpoint/restore on substrate.
    runtime: go
    modelConfig: default-model-config
    systemMessage: |
      You are a helpful Kubernetes assistant running inside an Agent Substrate
      gVisor actor. Use the Kubernetes tools to answer questions about the
      cluster. When asked who you are, say "I am a Kubernetes agent running
      inside a gVisor actor on Agent Substrate." Keep answers concise.
    tools:
    - type: McpServer
      mcpServer:
        name: kagent-tool-server
        kind: RemoteMCPServer
        apiGroup: kagent.dev
        toolNames:
        - k8s_get_resources
        - k8s_describe_resource
        - k8s_get_pod_logs
        - k8s_get_events
  substrate:
    workerPoolRef:
      name: kagent-default

kubectl apply -f manifests/hello-substrate.yaml
kubectl wait sandboxagent/hello-substrate -n kagent --for=condition=Ready --timeout=5m

kubectl get sandboxagent -n kagent
kubectl get actortemplates.ate.dev -n kagent
kubectl get pods -n kagent -l ate.dev/worker-pool=kagent-default -o wide

The first golden snapshot takes ~60–90s. kagent projects the SandboxAgent into an owned ActorTemplate (and secrets); you don't hand-write the ate.dev CRDs for the happy path.

Step 5 — Chat and watch suspend / resume#

kubectl -n kagent port-forward svc/kagent-ui 8080:8080
# http://localhost:8080 → Agents → hello-substrate

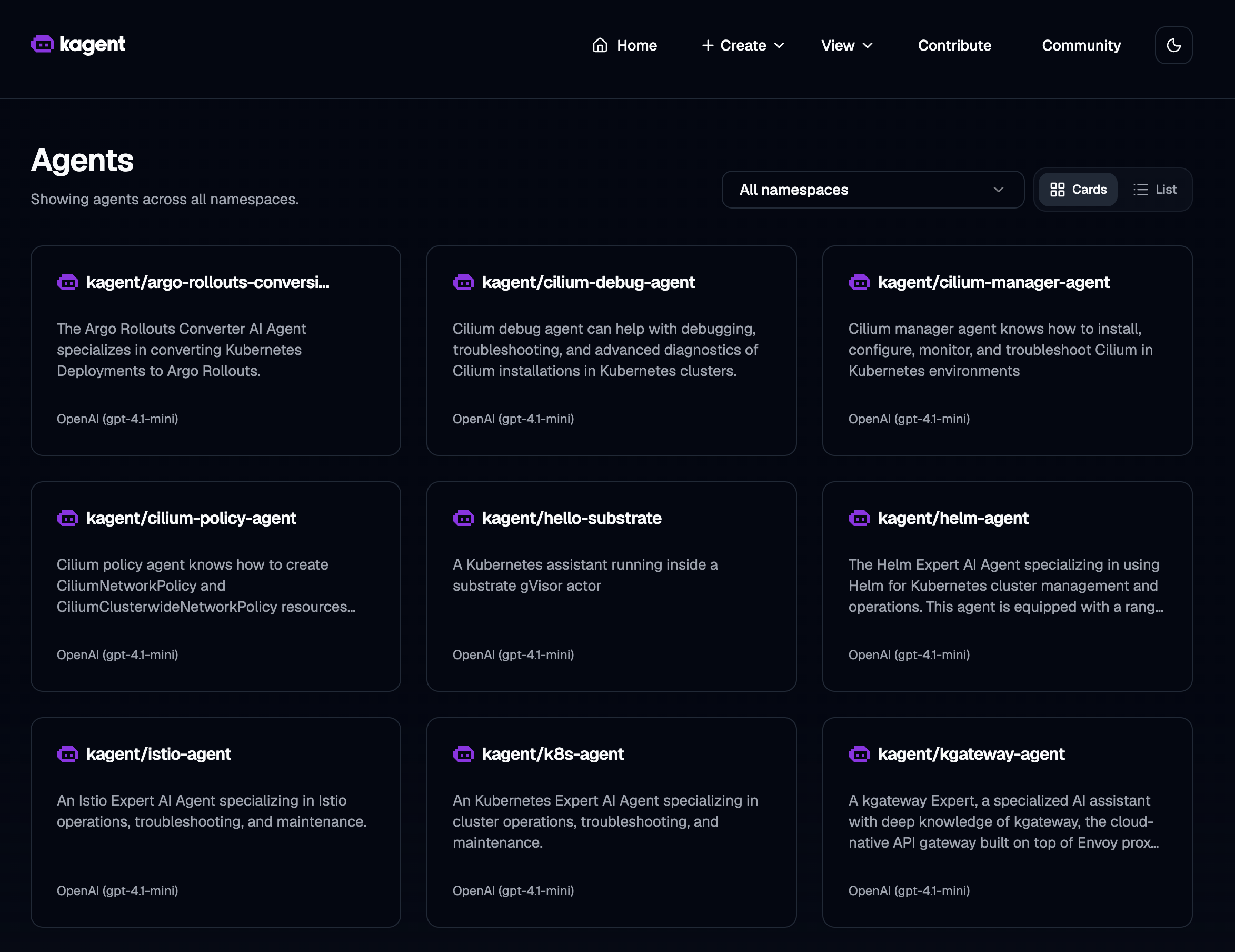

The Agents view lists every agent across namespaces — hello-substrate (our declarative Kubernetes assistant on the default pool) sits alongside the built-in kagent library (k8s, Helm, Istio, Cilium, kgateway, …). Open it to start a conversation.

Try:

What are you, and where are you running? Answer in one sentence. List pods in ate-system.

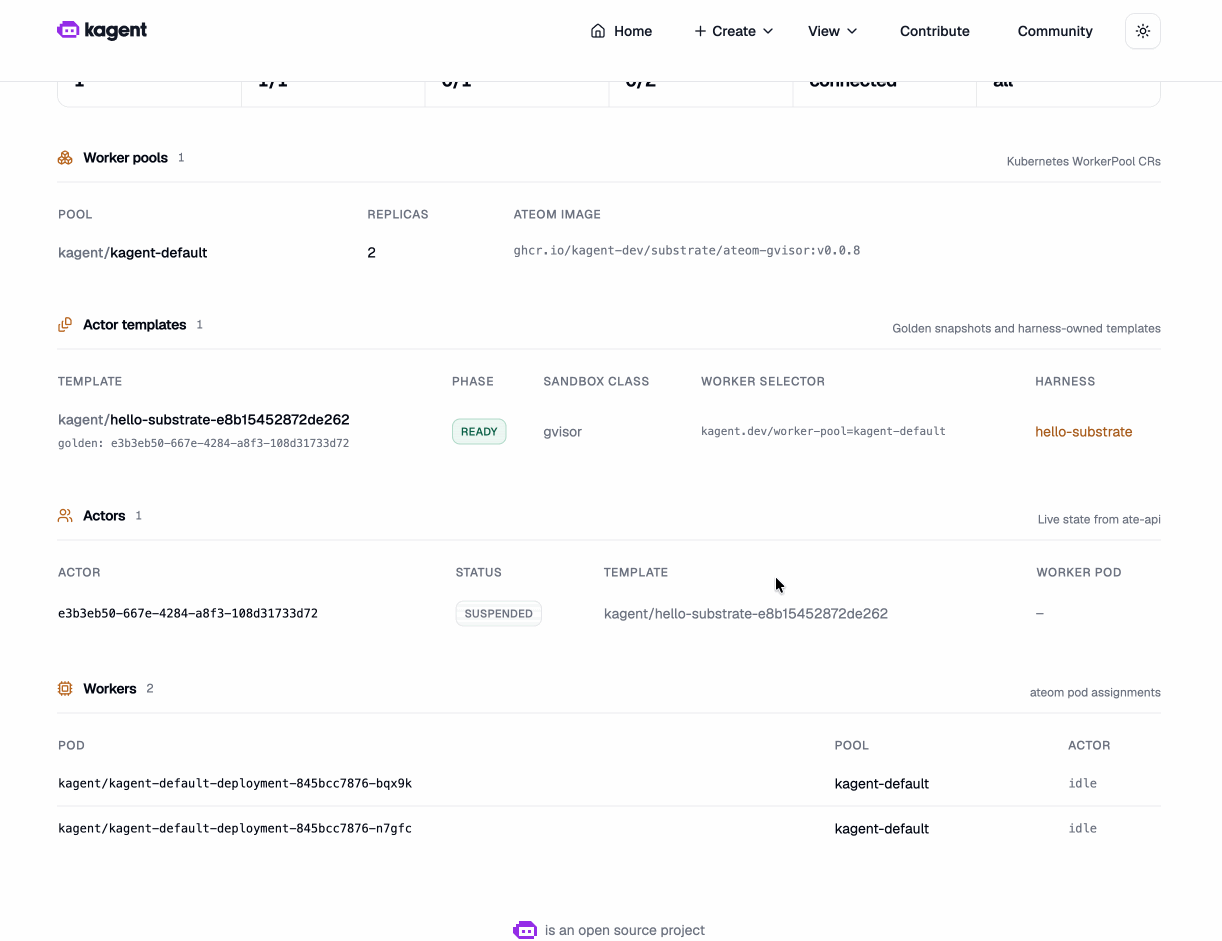

Between requests the session actor should sit Suspended (UI View → Substrate, or CLI below). Next message restores it sub-second.

The View → Substrate page is where the multiplexing thesis becomes visible: the kagent-default WorkerPool (2 replicas on ateom-gvisor:v0.0.8), the hello-substrate ActorTemplate (READY, sandbox class gvisor, backed by its golden snapshot), the live actor flipping to SUSPENDED between turns, and both workers sitting idle — no pod tax while the session waits.

Drive ate-api with grpcurl#

kubectl port-forward -n ate-system svc/api 18443:443 >/tmp/pf-api.log 2>&1 &
sleep 3
TOKEN=$(kubectl create token kagent-controller -n kagent --audience=api.ate-system.svc --duration=15m)

grpcurl -insecure -H "authorization: Bearer $TOKEN" -d '{}' \
  localhost:18443 ateapi.Control/ListWorkers

grpcurl -insecure -H "authorization: Bearer $TOKEN" -d '{}' \
  localhost:18443 ateapi.Control/ListActors

ACTORS_JSON=$(grpcurl -insecure -H "authorization: Bearer $TOKEN" -d '{}' \
  localhost:18443 ateapi.Control/ListActors)
ACTOR_ID=$(echo "$ACTORS_JSON" | jq -r '.actors[0].actorId // empty')
ATESPACE=$(echo "$ACTORS_JSON" | jq -r '.actors[0].atespace // empty')

# ResumeActor expects actor_ref { atespace, name } — not a bare actor_id field.
if [ -n "${ACTOR_ID:-}" ] && [ -n "${ATESPACE:-}" ]; then
  grpcurl -insecure -H "authorization: Bearer $TOKEN" \
    -d "{\"actor_ref\":{\"atespace\":\"$ATESPACE\",\"name\":\"$ACTOR_ID\"}}" \
    localhost:18443 ateapi.Control/ResumeActor
fi

Scale the WorkerPool#

One worker can serve many sequential declarative sessions (each releases the slot after snapshot). Scale when you need overlapping sessions or harnesses that pin a slot:

kubectl scale workerpool kagent-default -n kagent --replicas=3

How kagent and substrate fit together#

 User / UI
    │
    ▼
 kagent (Agent / SandboxAgent CRDs, model config, tools)
    │  CreateActor / Resume on chat
    ▼
 Agent Substrate (ateapi + atenet + atelet + workers)
    │  gVisor sandbox per assigned actor
    ▼
 Your agent binary (Go ADK) + MCP tools

• Without substrate: kagent runs agents as ordinary Kubernetes Deployments (always-on pods).
• With substrate: SandboxAgent + spec.substrate.workerPoolRef → actor on the pool; suspend when idle.

Christian Posta's write-up frames the product story: agents are long-lived but idle; you need isolation (gVisor/Firecracker) and real lifecycle (suspend, snapshot, resume). Substrate + kagent is that path open-sourced under the kagent umbrella. See also Solo's blog and the official kagent Agent Substrate example.

Known issues & troubleshooting#

Cleanup#

./teardown.sh
# or: kind delete cluster --name kagent-substrate

What's next#

Suspend-and-resume is the feature that finally makes per-session stateful agents affordable at scale on Kubernetes. Spin it up, chat with hello-substrate, and watch a small worker pool serve far more sessions than it has pods.
